Continuous weight weighing device

Tamaki Co., Ltd. handles the continuous subtraction weighing machine "Zero Line Feeder (TFP-RF-LW / CSF-LW type)".

The amount of cutting can be freely set by the number of screw rotations. We can manufacture from powder to pellets with specifications that match the raw materials.
In addition, the operating status can be visually confirmed by operating the touch panel and checking the screen.

Features of continuous weight weighing device The cutting amount can be freely set by the screw rotation speed (within the capacity range) Higher-level cooperation is possible (the amount of cutout can be received and specified by communication from the higher level) It is possible to check the operating status by logging the cutout amount to the SD card. Higher level cooperation of logging is possible Manufactured with specifications that match the raw materials, from powder to pellets

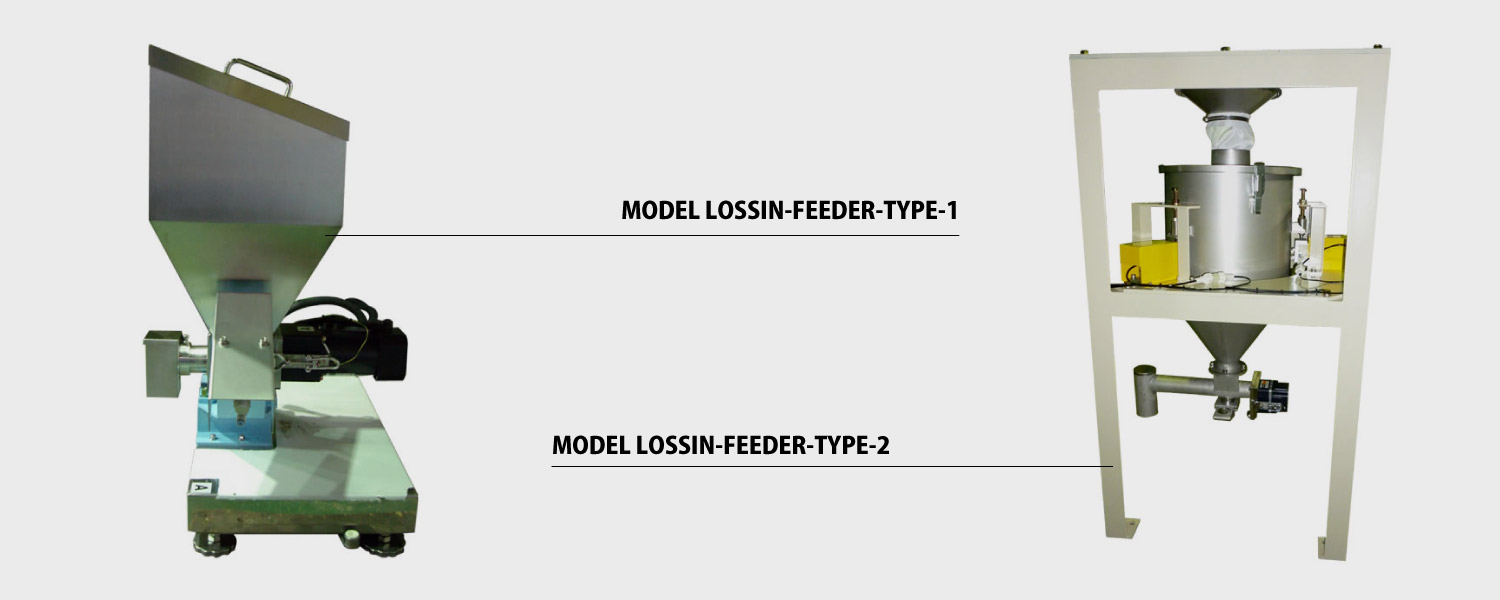

Subtraction type continuous weight weighing device (loss-in type feeder)

The subtraction type weight weighing device is a device that measures the weight loss of the raw material cut out from the weight of the entire material hopper and screw feeder at regular intervals and supplies it in a fixed quantity.

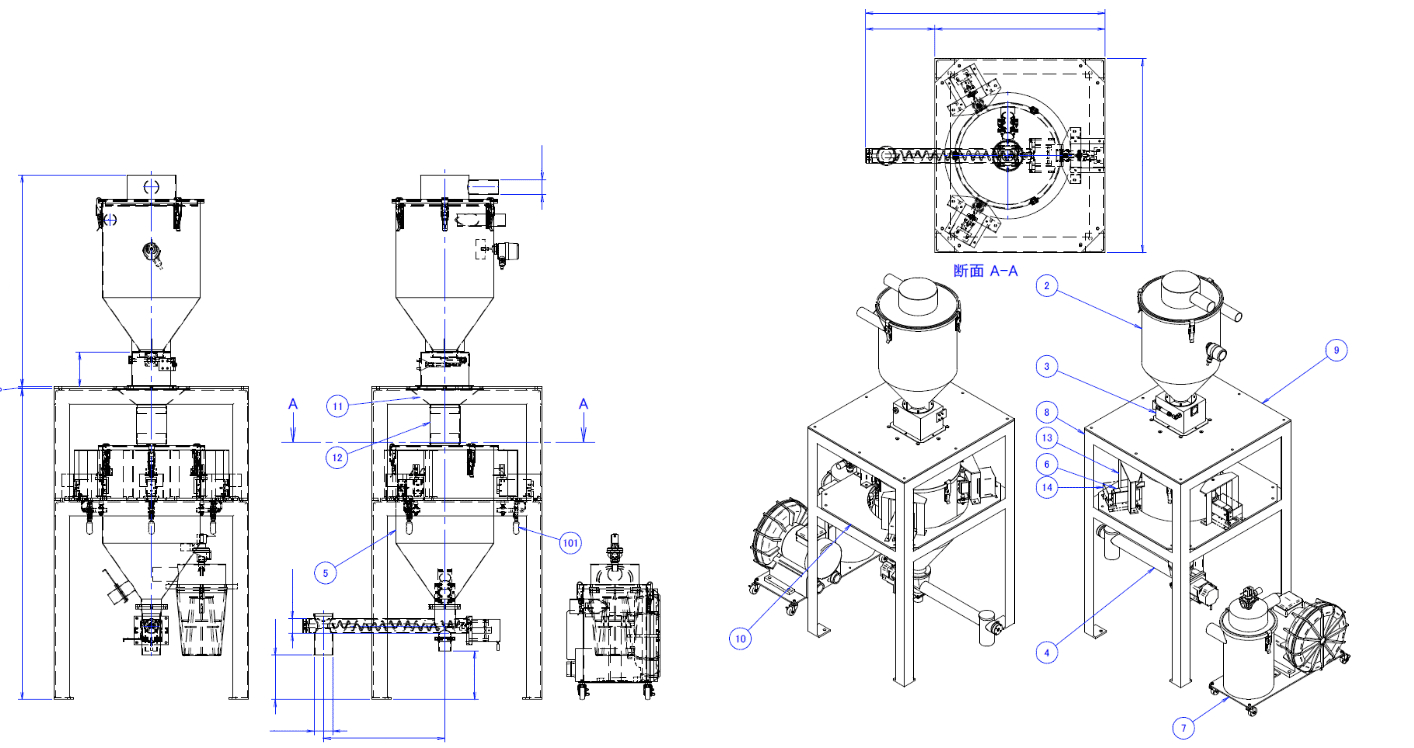

Subtractive continuous flow feeder TFP-RF-LW / CSF-LW type
Part name Hopper loader 8 mount Damper case Screw feeder Weighing hopper assembly Load cell assembly Blower unit Mount	Part name Stand top plate Stand middle plate Discharge damper case sleeve Weighing hopper suspension Load cell cover

Solving problems with weighing machines

Do you have any problems such as "I can't weigh a little" or "I want to mix in grams"?
Tamaki Co., Ltd. can manufacture from powder to pellets with specifications that match the raw materials.

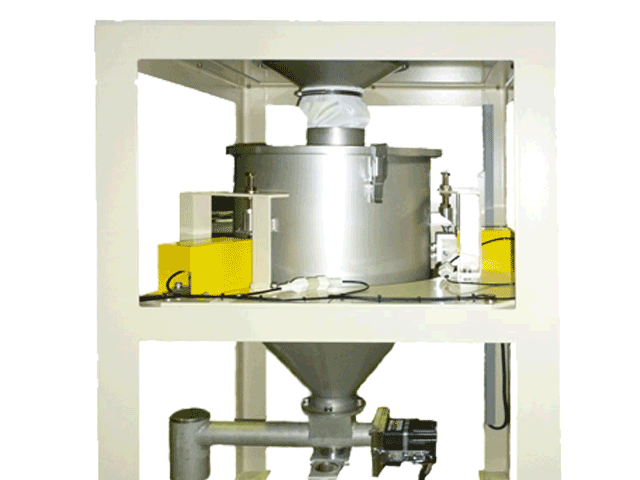

Continuous subtraction weighing machine Zero line feeder enables accurate weighing from powder to pellets according to the raw material.
We also accept requests for actual weighing machine tests using the raw materials you have.

Instructions for subtractive continuous weight weighing device

Manual download (PDF format)
