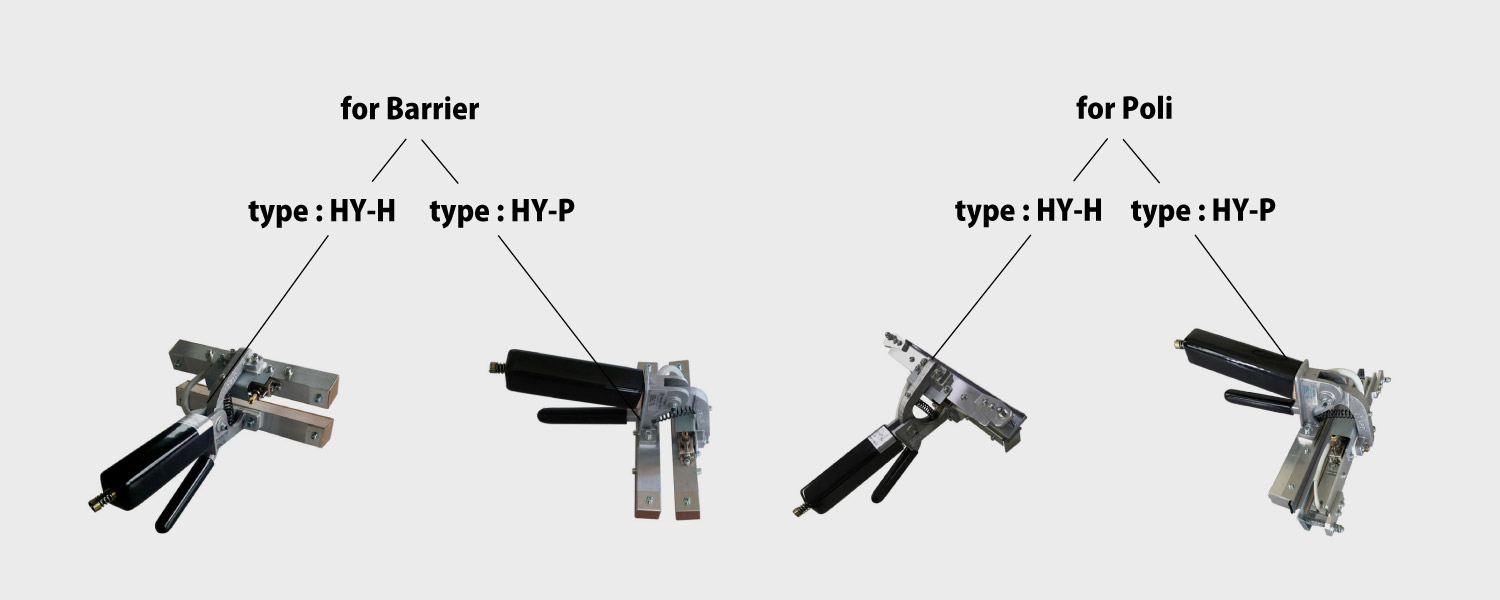

Hand sealer
Information on Tamaki's hand sealer. It is simple, easy to use, and can be used for a long time.
"Barrier metal foil" For packing and packaging large and small machinery that uses various moisture-proof paper and various polylaminated paper. For poly, it is used for poly and PP (non-stretched). Since it is equipped with a temperature controller, it can be used according to the appropriate sealing temperature for various films. A compact type that can be used anywhere.
Introduction video
Introduction for hand sealer barrier

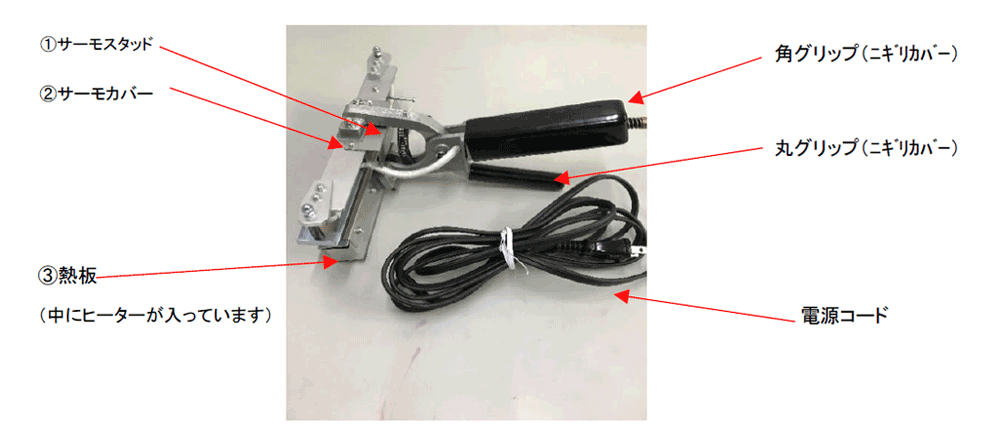

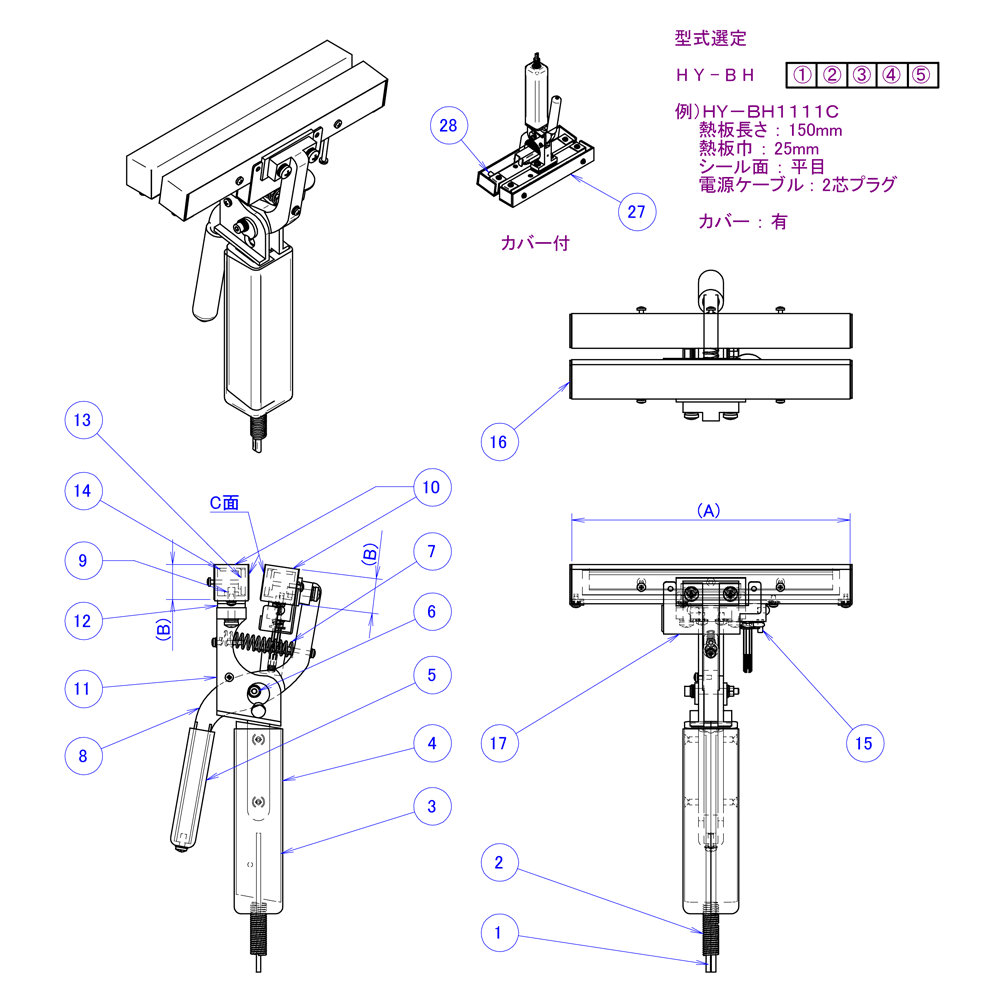

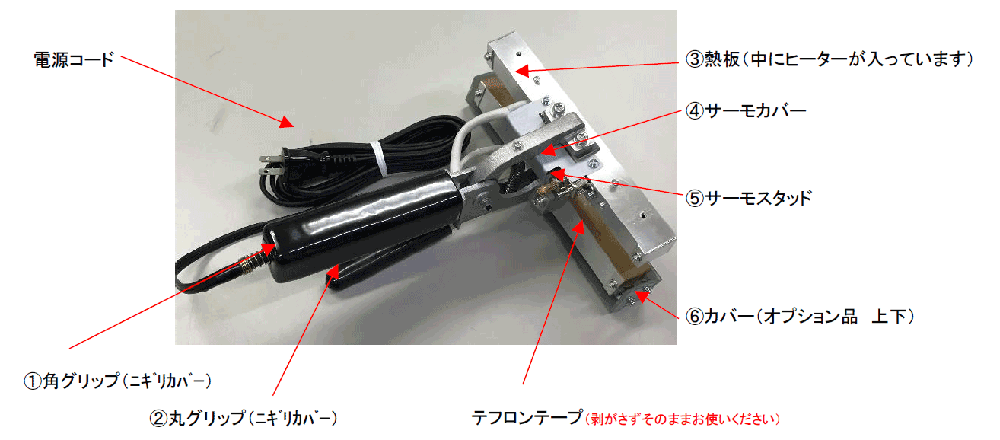

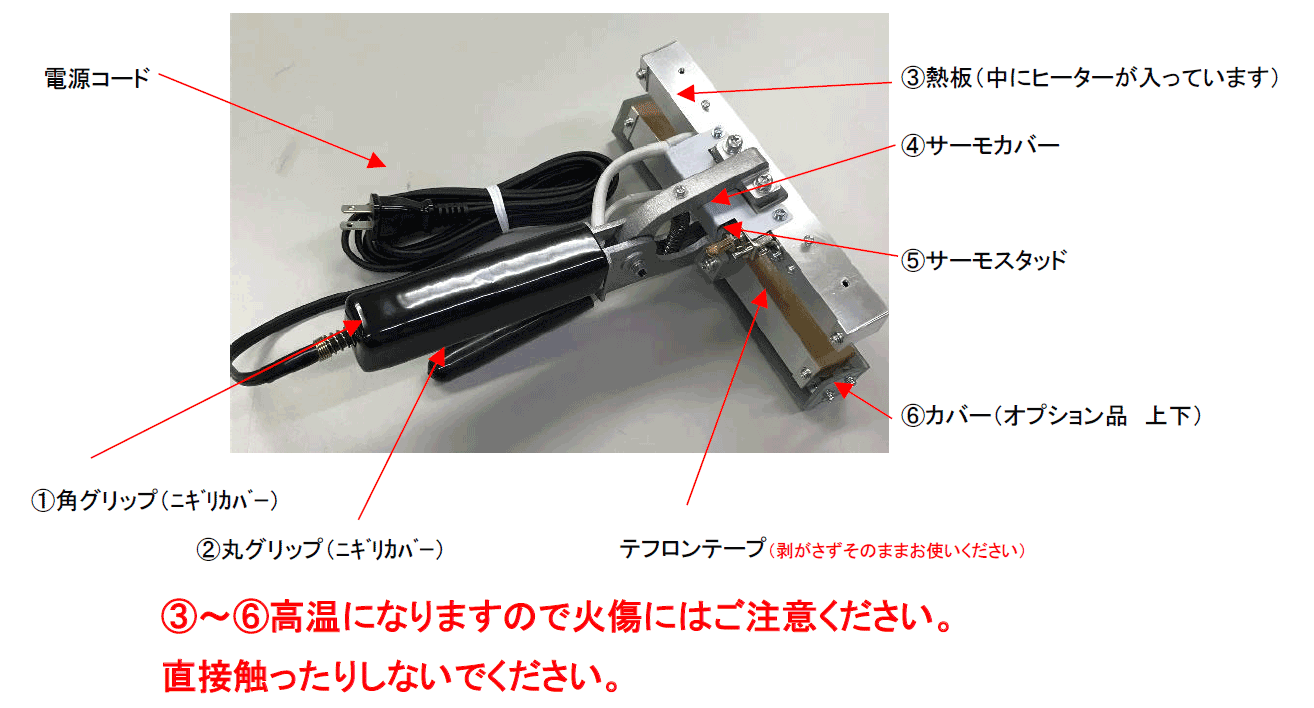

Name of each part
 |
 |
|
1 |
2 |
3 |
4 |
5 |
|
Hot platelength
Adimension |
Hotplatewidth
Bdimension |
Sealsurface
C side |
power cable
Part 1 |
cover
Part 27 |
| 1 |
150mm |
25mm |
flounder |
2x2HHFF3mP(with frame)
2-core plug |
Yes: C None: Nodescription |
| 2 |
200mm |
15mm |
Sideways |
2PNCT 0.75mm2 (2cores)
Plug 2P |
Yes: C None: Nodescription |
| 3 |
250mm |
15mm |
Sideways |
2PNCT 0.75mm2 (2cores)
Plug 2P |
None: NodescYes: CNone: Nodescriptionription |
| 4 |
300mm |
15mm |
Sideways |
2PNCT 0.75mm2 (3cores)
Plug 3P |
Yes: C None: Nodescription |
| number |
Part name |
Material |
quantity |
| 1 |
Power cord |
|
1 |
| 2 |
Cord (protection) spring |
|
1 |
| 3 |
Wooden nigiri |
wood |
2 |
| 4 |
Square grip (nigiri cover) |
Soft vinylchloride |
1 |
| 5 |
Round grip (nigiri cover) |
Soft vinylchloride |
1 |
| 6 |
Hinge pin |
SUS |
1 |
| 7 |
Open / close (compression)spring |
|
1 |
| 8 |
arm |
aluminum |
1 |
| 9 |
Plate nut |
SPC |
1 |
| 10 |
Hot plate (top) (bottom) |
aluminum |
1 |
| 11 |
flame |
aluminum |
1 |
| 12 |
Insulation board |
Silicic acidbinder |
2 |
| 13 |
heater |
|
2 |
| 14 |
Heater holder |
aluminum |
2 |
| 15 |
Thermostat |
|
1 |
| 16 |
Side cover |
aluminum |
4 |
| 17 |
Thermostat cover |
SUS304 |
1 |
| 27 |
cover |
Glass epoxy |
2 |
| 28 |
Spacer (cover) |
SPCC |
4 |
|
Manual download
Introduction for hand sealer poly

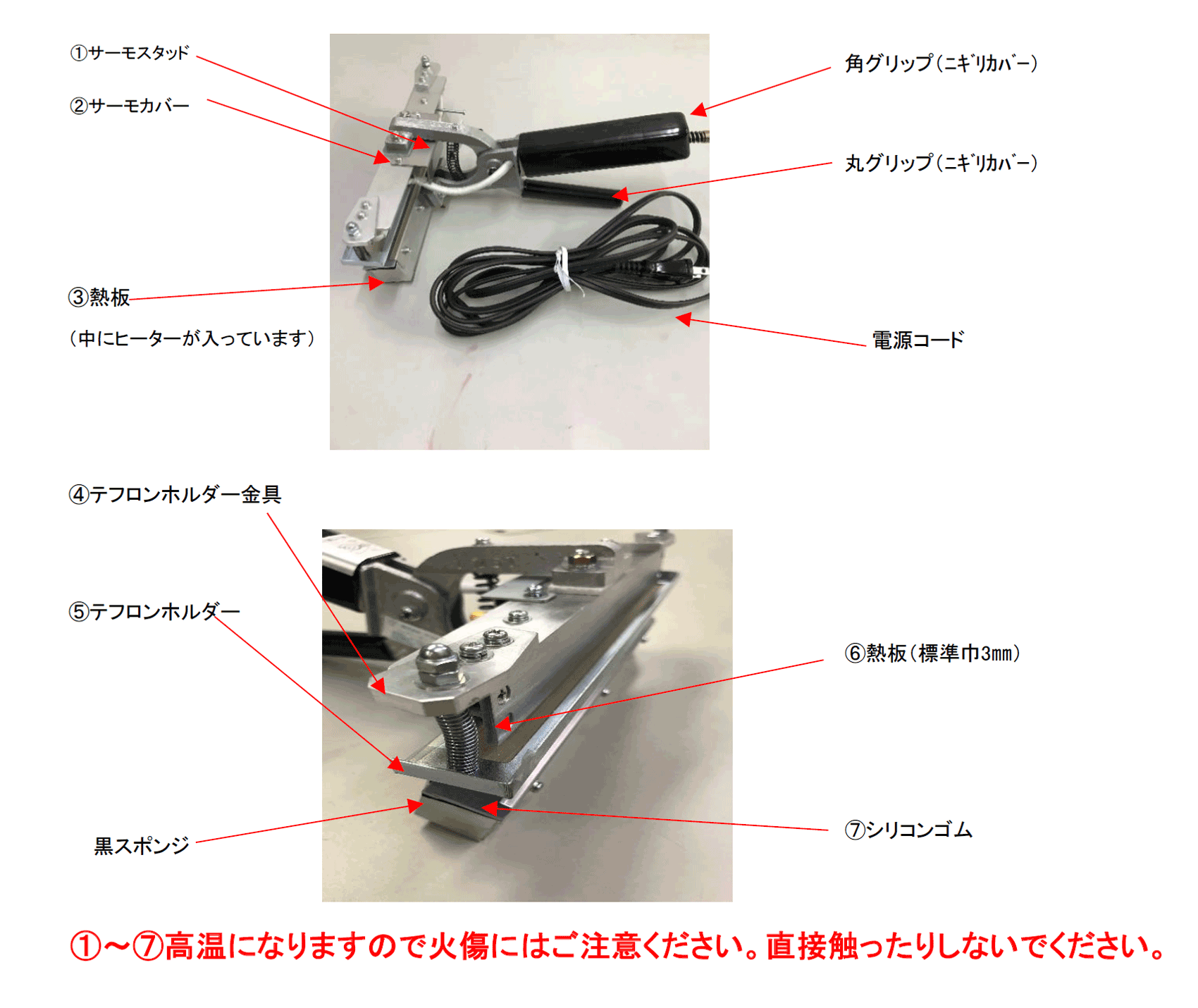

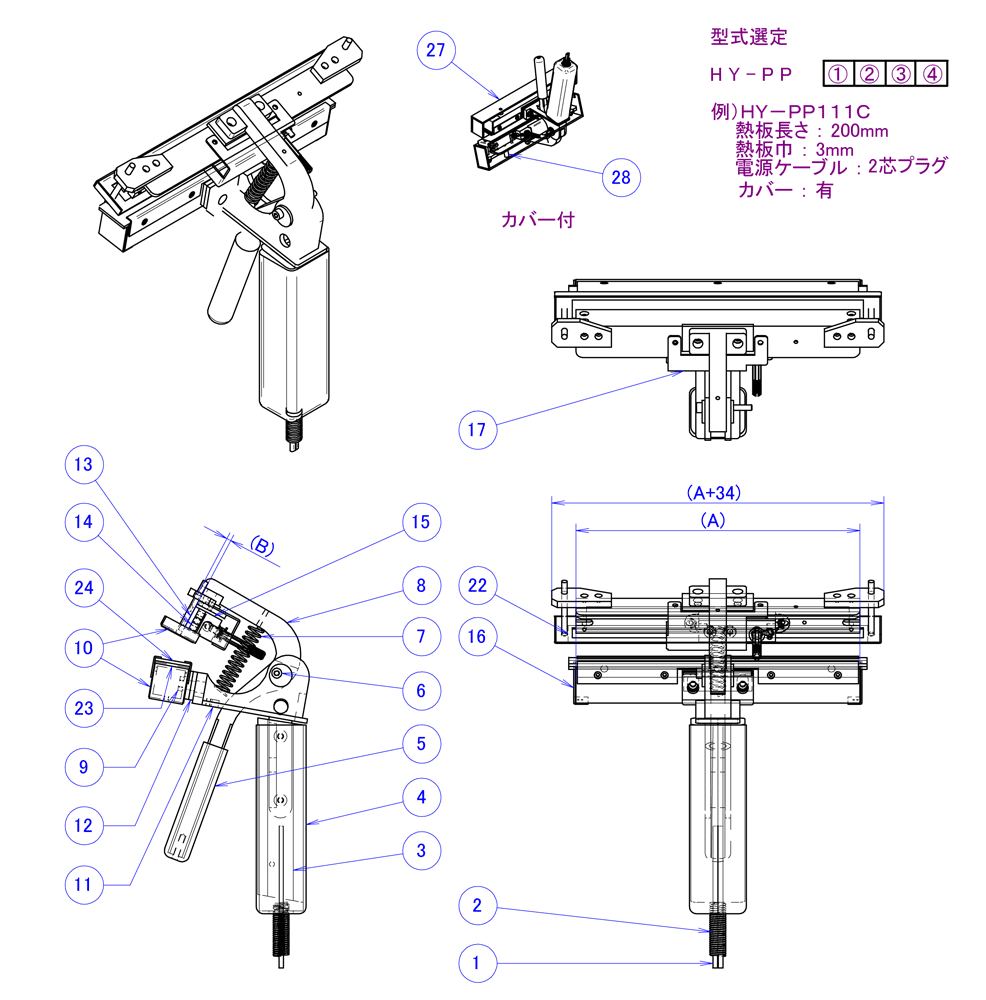

Name of each part
 |
|
1 |
2 |
4 |
4 |
| 1 |
Hot platelength
Adimension |
Hot platewidth
Bdimension |
power cable
Part 1 |
cover
Part27 |
| 2 |
200mm |
3mm |
2x2HHFF3mP(with frame)
2-core plug |
Yes: CNone: Nodescription |
| 3 |
250mm |
5mm |
2PNCT 0.75mm2 (2cores)
Plug 2P |
Yes: CNone: Nodescription |
| 4 |
300mm |
10mm |
2PNCT 0.75mm2 (3cores)
Plug 3P |
Yes: CNone: Nodescription |
| number |
Part name |
Material |
quantity |
| 1 |
Power cord |
|
1 |
| 2 |
Protectivespring |
|
1 |
| 3 |
Wooden nigiri |
wood |
2 |
| 4 |
Square grip (nigiricover) |
Soft vinylchloride |
1 |
| 5 |
Round grip (nigiricover) |
Soft vinylchloride |
1 |
| 6 |
Hinge pin |
SUS |
1 |
| 7 |
Open / close(compression)spring |
|
1 |
| 8 |
arm |
aluminum |
1 |
| 9 |
Plate nut |
SPC |
1 |
| 10 |
Hot plate (top)(bottom) |
aluminum |
1 |
| 11 |
flame |
aluminum |
1 |
| 12 |
Insulationboard |
Silicic acidbinder |
2 |
| 13 |
heater |
|
1 |
| 14 |
Heater holder |
aluminum |
1 |
| 15 |
Thermostat |
|
1 |
| 16 |
Side cover |
aluminum |
2 |
| 17 |
Thermostatcover |
SUS304 |
1 |
| 22 |
Fluororesintape |
|
1 |
| 23 |
Sponge (black) |
|
1 |
| 24 |
Silicon rubber |
|
1 |
| 27 |
cover |
Glassepoxy |
2 |
| 28 |
Spacer (cover) |
SPCC |
4 |
|
Manual download
specification
| Power consumption |
100V 300W for Barrier / 100V 150W for Poly |
| Mechanical dimensions |
For Bariya (width) 200 x 120 x 220
For poly (width) 240 x 120 x 220 |
| Sticker pattern |
Flounder for Bariya / Flounder for Poly / Flounder for Poly |
| Hot plate size |
For Barrier (width) 25m / m x (length) 200m / m
For poly (width) 3m / m x (length) 200m / m |
| weight |
0.9kg for Barrier / 0.8kg for Poly |
| Other |
Side grain, seal width, length can be changed. Obtained pse to confirm conformity with the Electrical Safety Law |
Manual download
Please download the instruction manual of Tamaki's hand sealer from the following.
It is also possible to create an original product in combination with other models according to your company's request.
